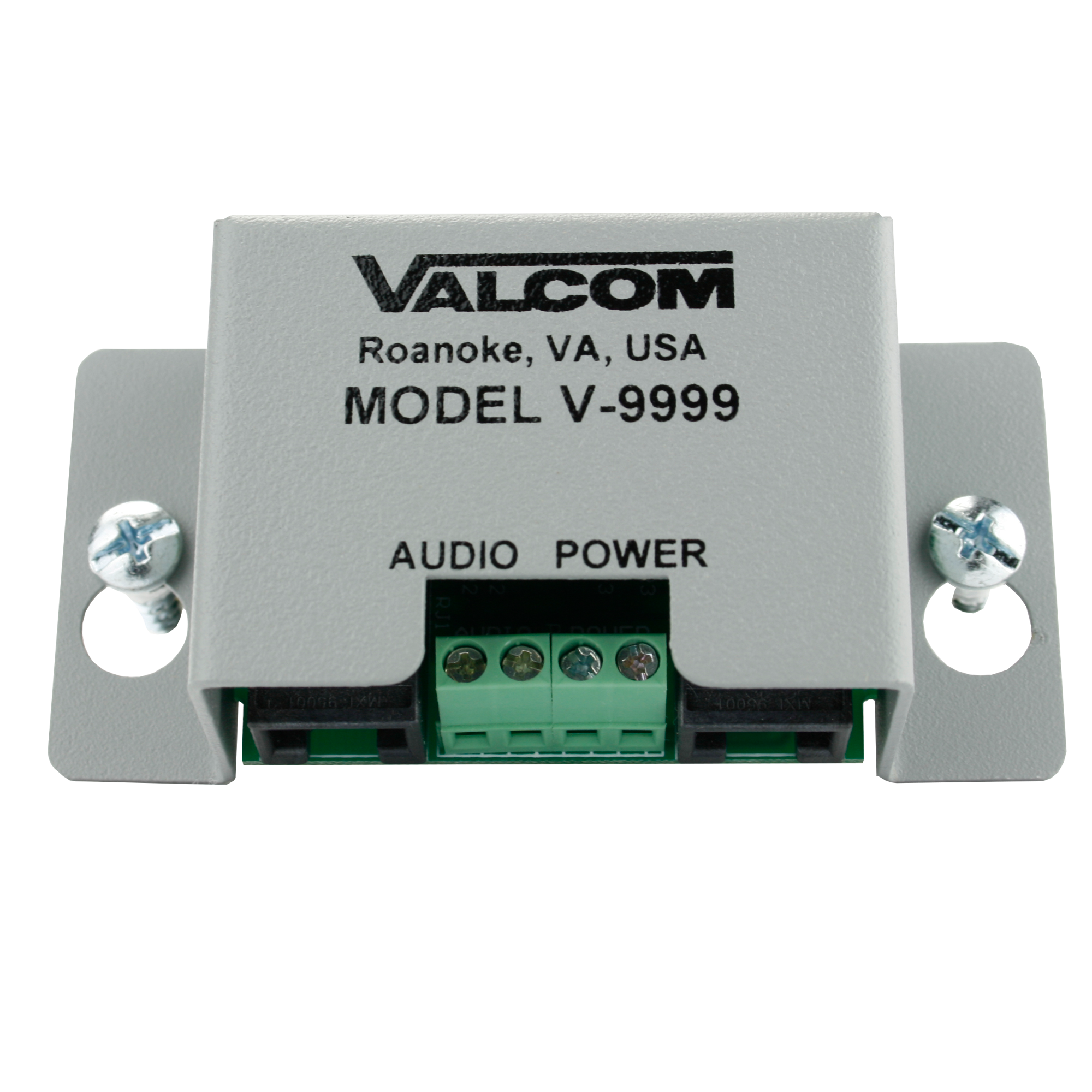

The V-9999 End of Line Module provides end of line termination of audio and 24 Volt dc pairs when
wire monitoring self-amplified speaker runs.
- Used with the supervised IDF model VL9998
- Provides end of line termination for supervised amplified speaker runs
- Connections for both audio and power
- Includes wall mountable housing
- Screw terminal or RJ45 modular connection
- Solid state circuitry
- Audio and power connections not polarity sensitive
Specifications
Dimensions & Weight
Dimensions1.75in H x 3.75in W x 1.25in D
(4.45cm x 9.53cm x 3.20cm)
Weight:
0.50lbs (0.23kg)
Shipping Weight:
2.40lbs (1.08kg)
