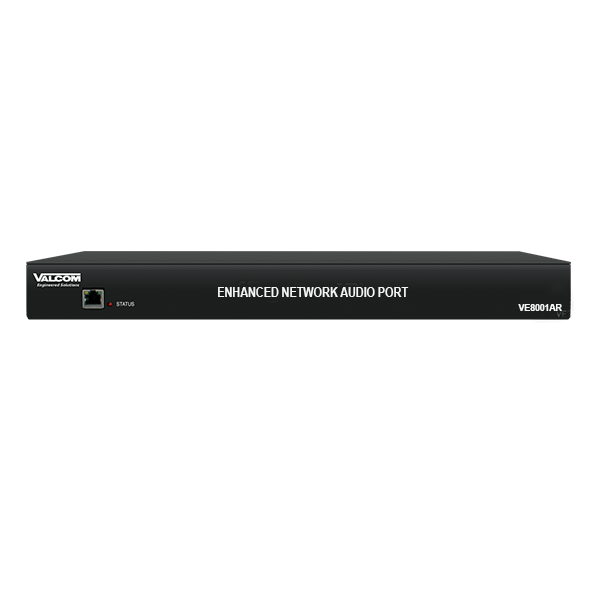

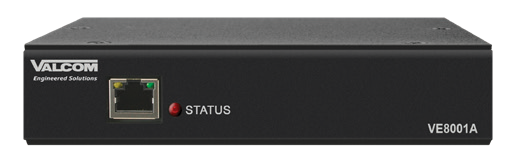

VE8001AR-V4

The VE8001AR-V4 Network Page Zone Extender enables voice access to two zones of oneway paging over an IP based LAN/WAN. This allows page zone extension anywhere on the network. Multiple VE8001AR-V4 Network Page Zone Extenders can be used on the same network to create very large and distributed public address systems. Example applications include: multiple floors in a single building, multiple buildings in a campus environment, city wide paging of all fire and rescue buildings, interstate paging between bank branches.

• Audio Input
• 2 Audio Outputs
• 2 Form C Relays
• 1 Contact Closure Input
• RJ-45 jack for network connection
• Front panel activity LED
• Provides audio for up to 40 Valcom one-way amplified speaker assemblies
• AUX audio input via RCA jack
• Contact closure or VOX operation of audio input
• Removable screw terminal connectors provided for audio and relay interface
• AUX input music mutes during page
• Output control contact closure provided during paging output
• Compatible with 25- or 70-Volt amplifiers
• Barrel jack for optional DC power
• Power over Ethernet 802.3af Compatible
